- Our Price: $10,988
- List Price: $12,995
- Discount: $2,007
-
Sleeps 7
-
BunkhouseFront Bedroom
-
29ft Long
-
5,175 lbs

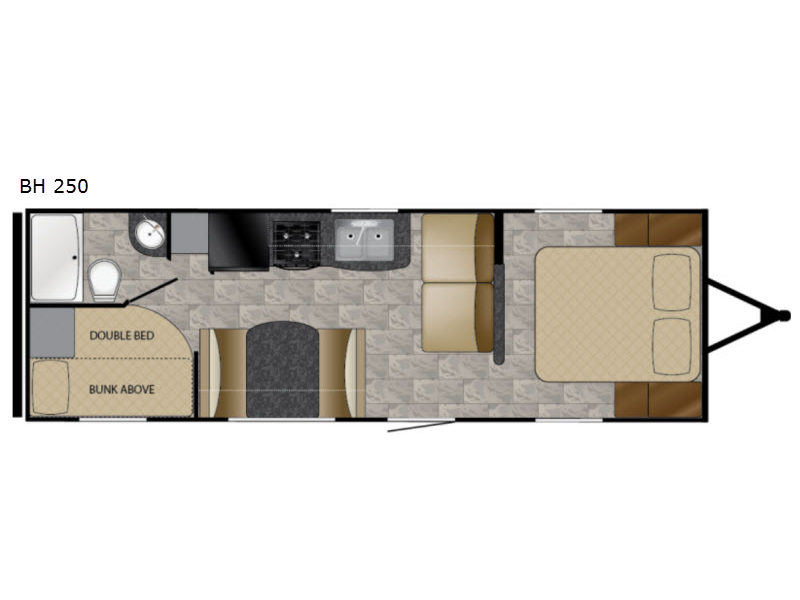

BH 250 Floorplan
Specifications
Sleeps | 7 | Length | 29 ft 1 in |
Ext Width | 8 ft | Ext Height | 10 ft 9 in |
Int Height | 6 ft 8 in | Hitch Weight | 735 lbs |
GVWR | 6900 lbs | Dry Weight | 5175 lbs |
Fresh Water Capacity | 41 gals | Grey Water Capacity | 35 gals |
Black Water Capacity | 35 gals | Tire Size | ST205/75R14-C |
Furnace BTU | 30000 btu | Number Of Bunks | 2 |
Available Beds | Queen | Refrigerator Type | Double Door with Freezer |
Refrigerator Size | 6.3 cu ft | Cooktop Burners | 3 |
Number of Awnings | 1 | Axle Weight | 7000 lbs |
LP Tank Capacity | 40 | Water Heater Capacity | 12 gal |
Water Heater Type | DSI | AC BTU | 13500 btu |
Awning Info | 14' | Axle Count | 2 |
Number of LP Tanks | 2 | Shower Type | Sunken Tub/Shower |
VIN | 5SFPB2927GE314652 |
Description
With a rear bunk house and sleeping space for up to seven people, you will find that there is plenty of room inside the Pioneer travel trailer BH 250 by Heartland RV.
Straight in from the entry door there is a sofa that faces the kitchen area. Along the road side you will find the kitchen amenities needed to create your meals while you are away from home. Here there is a double sink, three burner range, a refrigerator, plus a pantry for your dry goods. Enjoy your meals at the dinette which is located to the left of the door. At night, if you need extra sleeping space you can easily convert the dinette into a bed.
The rear left corner features a double bed on the bottom and a bunk above, plus there is also a storage area above the double bed.
The opposite corner is where you will find the bathroom. Here there is a toilet, shower, and a sink.
In the front of this model there is a bedroom where you will find a queen bed, plus nightstand, upper cabinets, and so much more!
Features
Standard Features (2017)
Construction
- .024” aluminum exterior metal
- R-7 rated fiberglass insulated sidewall, roof, floor
- 5/8” marine grade floor decking
- Roof rafters wood tapered 4-1/2” trusses
- Aerodynamic radius front profile
- Wall studs on 16” centers
- Electric-powered slide room
- Fully walkable roof
- One-piece, seamless rubber roof
- 8’ exterior width
- 80” interior ceiling height
- 2” x 3” longitudinal floor joists
- Cambered structural steel I-beam frame
- Finished pass-through storage
Exterior
- Radial tires with steel rims and E-Z Lube axles
- Chrome wheel lug covers
- Molded fender skirts
- Colored front and rear metal
- Patio light with inside switch
- Screen door
- Rain guttering with extra long drip spouts
- 20# LP bottles with auto change over and easy access cover
- Radius tinted safety glass windows
- Extra large entry grab handle
- Diamond plate stone guard
Interior
- Overhead cabinet over sofa in slide-outs
- Multi-purpose inside/outside dinette table
- Convertible sleeper sofas
- Cable TV hook-up with RG6 coax cabling
- AM/FM/MP3 CD/DVD entertainment system with inside and outside speakers
- Crank-up TV antenna with signal booster
- Chair rail in slide room
- Designer light over dinette
- Wood pocket door in bedroom and bunk room
Heat, Air, Power and Water
- Hook-up for city water
- Systems monitor panel
- 12 Volt demand water pump
- 13,500 BTU ducted A/C
- 12 Volt electrical system with deluxe 110 Volt 45 Amp power converter
- DSI hot water heater
- Built-in 30 Amp power cord
- 110 Volt GFCI protected exterior receptacle
- Auto-ignition furnace with wall thermostat
- In-floor ducted heat
- Water system winterization kit
- Water heater bypass
Kitchen
- Microwave oven with carousel
- Ball bearing drawer guides
- Residential style (50/50) sink
- Three burner cook top
- Range hood with light and exhaust fan
- Double door refrigerator with freezer
- Stainless steel knobs and pulls
Bathroom
- ABS tub/shower surround
- Bathroom power vent
- Medicine cabinet with built-in shelf
- Towel ring
- Designer shower curtain
Bedroom
- Queen bed with innerspring mattress
- TV hookups
- Shirt wardrobe in bedroom
- Deep overhead storage cabinet above bed
- Electric outlets on both sides of the bed
Standard Safety Equipment
- Propane alarm
- Break-away switch
- Dead-bolt lock on entrance door
- Dual hitch safety chains
- Smoke alarm
- Multiple egress windows
- Fire extinguisher
- Carbon monoxide alarm
Options
- Spare tire and carrier
- Manual stabilizer jacks two pair
- Power stabilizer jacks two pair
- Power tongue jack
- Pull-out bike rack
- Exterior shower
- Electric awning with LED lights
- Black tank flush
- Heated and enclosed underbelly
- Night shades in living area and bedroom
- 15,000 BTU air conditioner in place of 13,500 BTU A/C
See us for a complete list of features and available options.
All features and specifications are subject to change.
